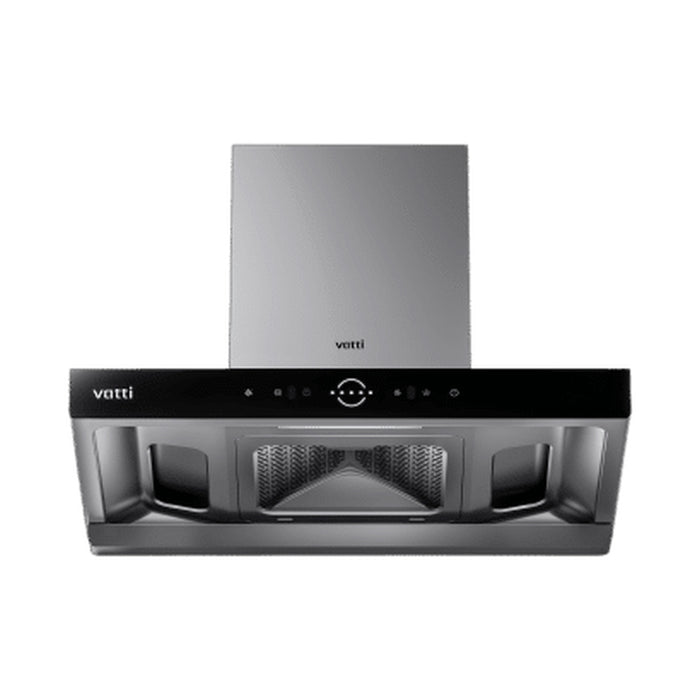

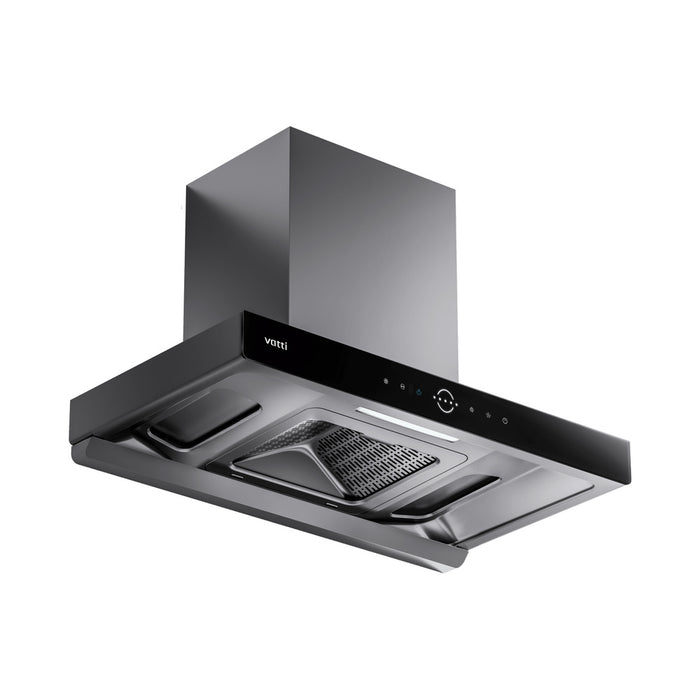

Chimney Hood VATTI V937
RM3,799.00 MYR
SKU VT-0130D
Details
The VATTI V937 is a T-shaped hood with three smoke-intake cavities and automatic pressure adjustment to suit duct resistance. It provides 2,500 m³/h airflow and 1,050 Pa pressure. The main grease filter removes as one piece for cleaning.
Specifications
| Airflow | 2,500 m³/h |
|---|---|
| Pressure | 1,050 Pa |
| Noise | 50 dB |
| Oil capture | 85 % |
- Pro Nano coating
- Curve corner for safety
- BLDC motor
- Waterproof motor
- Steam & hot wash auto clean
- Intelligent auto suction control
- Gesture sensor
- Three cavity hood
- Touch-panel controls
- Corrosion-resistant coating
- Ducted extraction or recirculation
Dimensions and installation
Product dimensions and technical details
| Width | 896 mm |
|---|---|
| Depth | 500 mm (512 mm with the back feet) |
| Height | 908 mm (chimney closed) |
| Chimney | 400 mm wide (second chimney section, 396 mm) |
| Chimney adjustment | 0 to 320 mm |
| Canopy depth | 322 mm (325 mm with the back feet) |
Installation requirements
| Clearance above the hob | 650 to 700 mm |
|---|---|
| Bottom of hood from the floor | 1,500 to 1,550 mm (over an 850 mm cabinet) |
| Cabinet opening | 910 mm |
| Ducting hole from the floor | 2,370 to 2,420 mm (7 inch, back to back or side way) |
| Hood outlet | 190 mm diameter |
| Ventilation hose | 180 mm inside, 185 mm outside |
| Telescopic pipe to the ceiling | 120 mm minimum |
