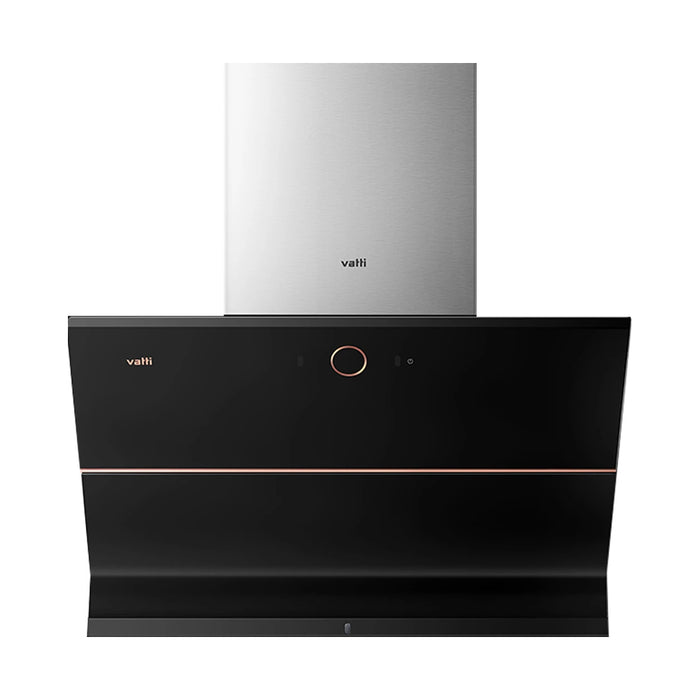

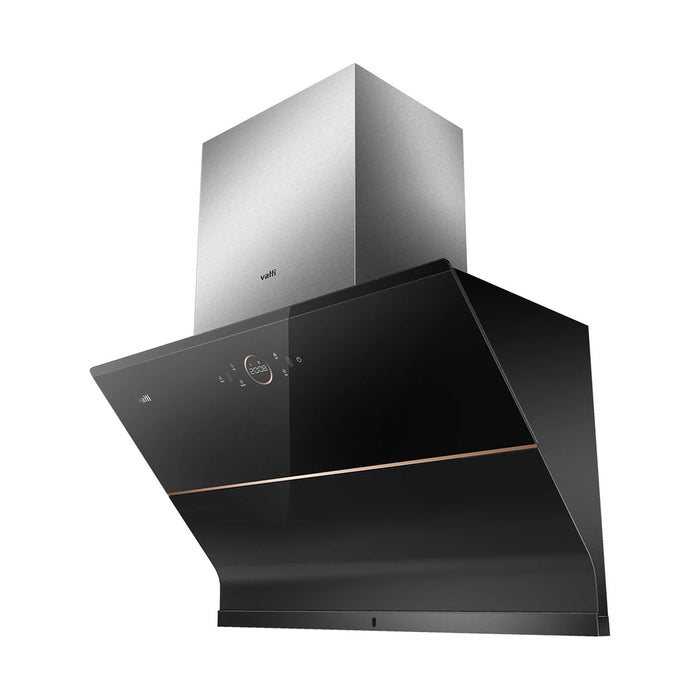

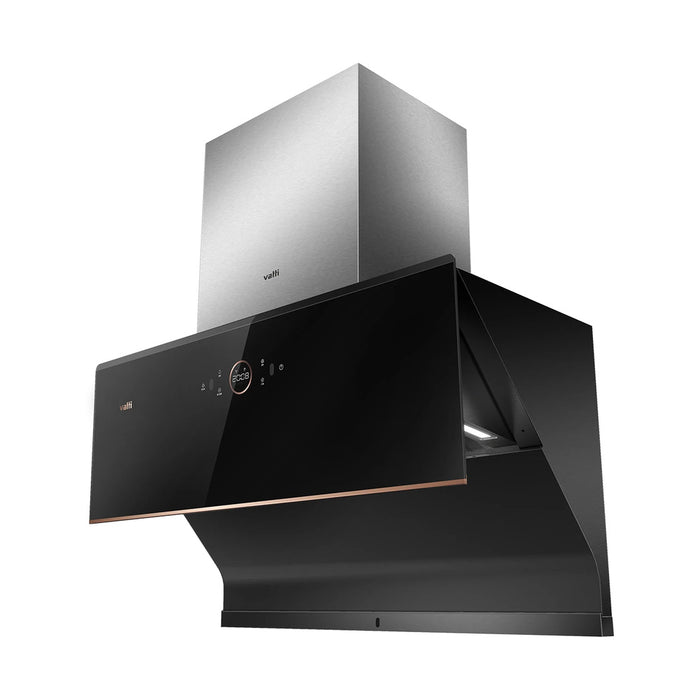

Cooker Hood VATTI V999
RM4,249.00 MYR
SKU VT-0130C
Details
The VATTI V999 has a curved side-intake canopy that gathers cooking smoke into a chamber. It delivers 2,500 m³/h airflow and up to 1,000 Pa pressure at 50 dB. Automatic cleaning uses steam and hot water, followed by a motor-drying stage.
Specifications
| Airflow | 2,500 m³/h |
|---|---|
| Pressure | 1,000 Pa |
| Noise | 50 dB |
| Oil capture | 85 % |
- BLDC Motor
- Gesture sensor
- Waterproof motor
- Steam & Hot wash auto clean
- Touch-panel controls
- Corrosion-resistant coating
- Ducted extraction or recirculation
Dimensions and installation
Product dimensions and technical details
| Width | 895 mm |
|---|---|
| Depth | 400 mm (including the rubber mats behind it) |
| Height | 734 mm (body and chimney, chimney closed) |
| Body height | 305 mm |
| Chimney cover | 420 mm wide (310 mm deep, adjustable 450 to 790 mm) |
Installation requirements
| Clearance above the hob | 400 to 500 mm |
|---|---|
| Bottom of hood from the floor | 1,250 to 1,350 mm (over an 850 mm cabinet) |
| Cabinet opening | 910 mm (580 mm high, with a removable shelf above the hood) |
| Ducting hole from the floor | 2,253 to 2,353 mm (7 inch, back to back or side way) |
| Hood outlet | 200 mm diameter |
| Ventilation hose | 180 mm inside, 185 mm outside |
| Telescopic pipe to the ceiling | 120 mm minimum |
