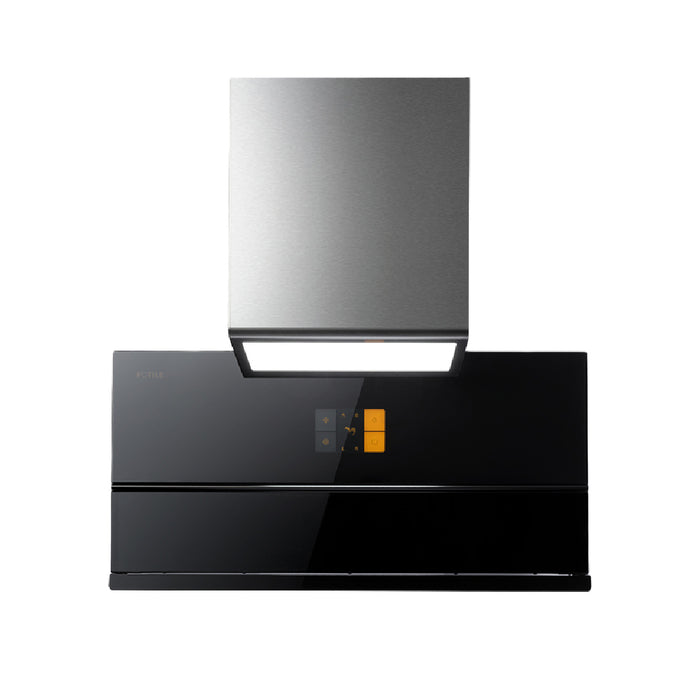

Chimney Hood AMG9007 Fotile

RM5,900.00 MYR
SKU FO-0010B
Add to Wishlist

Details:

Stronger - Brushless Direct-current Inverter (BLDC)

More Powerful, Better Efficiency - The Brushless Direct Current (BLDC) motor has a maximum static pressure of 950 Pa that handles long and winding air ducts and complicated installation spaces with ease.

Its maximum air flow of 1850m3/h refreshes all the air in a kitchen within 1.5 minutes, at the same time, keeping noise level as low as 43dB

Faster - Cooking Smoke Highway

Rear Extraction Design - The rear extraction design allows the extraction motor to rotate 180°, actively reducing the distance of cooking smoke and extracting it in a straight path.

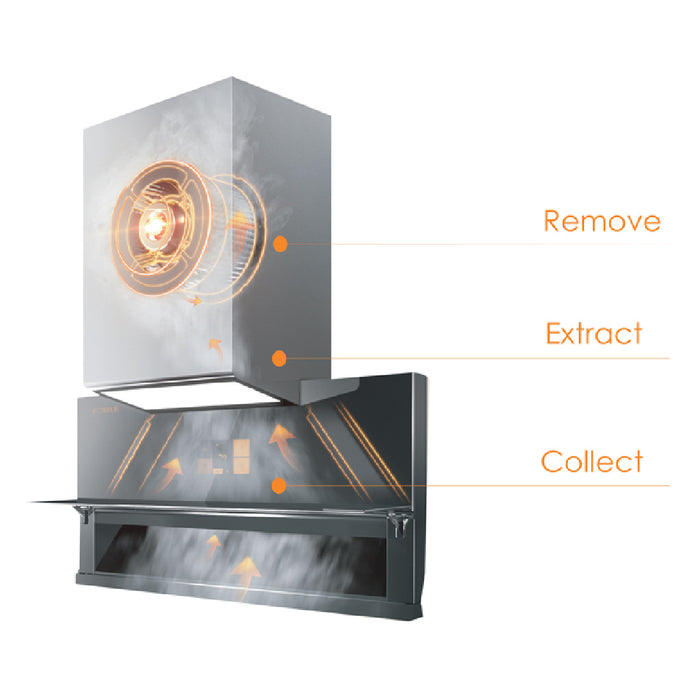

Nautilus Air Passageway reduces wind resistance and noise. With the 3-point Extraction System, cooking smoke is collected, extracted and removed in a single uninterrupted path.

Smart Smotion (Smoke + Motion) Detection

Turn the hood on and off with the wave of a hand

Easy To Clean

All-new filter-free design with glass frame, just wipe to restore it to its original lustre

Smarter - Smart Air Distribution

Intelligent Air Distribution - With a touch of a button, the FOTILE X-Series can focus its extraction power to either side of the hood, depending on where cooking smoke is concentrated. From stewing to stir-frying, the FOTILE X-Series concentrates extraction power to extract cooking smoke while minimizing noise for a more peaceful cooking experience.

Left Power Diverter: Diverts 70% of extraction power to the left side of the hood
Right Power Diverter: Diverts 70% of extraction power to the right side of the hood
When this function is activated, air pressure can increase by up to 50% on either side.

Low Noise Level

BLDC motor with multiple noise-reduction technologies. Noise level produced is as low as 43dB.

Specifications

  • Certification: CB, SIRIM
  • Type of Motor: Brushless DC Inverter Motor with Microchip Technology
  • Material of hood: 90cm wide tempered glass surface
  • Unrestrained airflow (m3/hr): 1850
  • IEC airflow (m3/hr): 1360
  • Motor Power (W): 258
  • Max Static Pressure (Pa): 950
  • Noise Level (dB): 47
  • No. of Speeds Fan Control: 3
  • Illumination Power in LED (W): 10 W (3 levels – adjustable)
  • Type of hood: Chimney hood
  • Oil Filtration Rate: 92%
  • Odor Reduction Rate: 97%
  • Automatic Turbo System: YES
  • Smart Smoke and Sound Detection: NIL
  • Intelligent Air Management: NIL
  • Anion Sterilisation: NIL
  • Delay Off Function: YES
  • Control Mode: Touch + Wave
  • Type of Filter: Filter free
  • Special Features: Smart Air Diverter
  • Power Supply: 240V/50hZ
  • Dimension W x D x H (mm): 897 x 325 x 1060

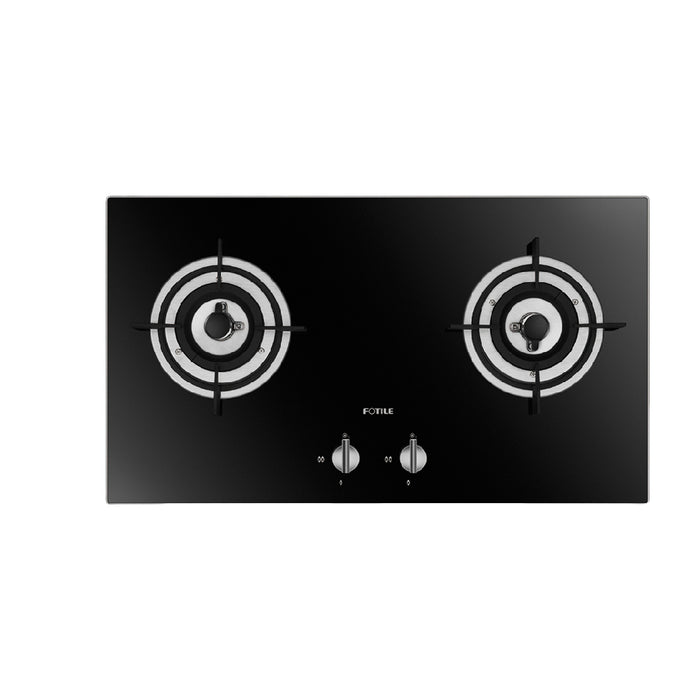

Hob FD2B

Grading Ring Technology, High Efficiency, More Stable

Grading Ring Technology

FD Burner technology help relieve gas momentum, balance the gas pressure and mix gas and air to make the combustion are more uniform and stable.
Patent No.: 201220321289.3


Integrated Iron Casting Burner

The material of the burner is cast iron and made with anti-corrosion processing.
The integrated burner has the same co-efficient of expansion and is completely sealed and safe to used.

Specifications

  • Certification: SNI, SIRIM
  • Technology of Hob: Burn Tech-l® Technology
  • No of Burners : 2
  • Surface Material: Tempered glass
  • Pan Support: Cast iron grate
  • Gas Type: LPG / NG
  • Heating Load (kW): L: 4.5 R: 4.5
  • Heat Efficiency: ≥ 60% > 60%
  • Fast Ignition: NO
  • Flame Failure Device (FFD): YES
  • Safety Ignition Pin: YES
  • Dimension W x D (mm): 730 x 410
  • Built-in Sizes W x D (mm): 660 x 360





NOTE: TO FIND OUT MORE ABOUT THIS PRODUCT PLEASE CONTACT US.
