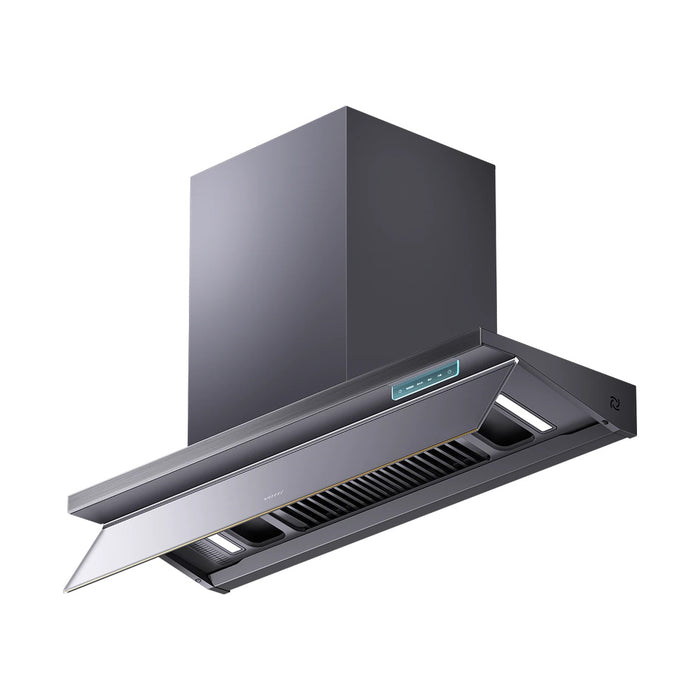

Cooker Hood VATTI V938
RM4,999.00 MYR
SKU VT-0130K
Details
The VATTI V938 fits within overhead cabinetry and automatically adjusts extraction to duct conditions. It offers 3,650 m³/h airflow and 1,600 Pa pressure at 48 dB, using a BLDC inverter motor. Air purification operates in standby, and cleaning combines steam with hot water.
Specifications
| Airflow | 3,650 m³/h |
|---|---|
| Pressure | 1,600 Pa |
| Noise | 48 dB |
| Oil capture | 92 % |
- Waterproof BLDC motor
- Smart intelligent PM2.5 measurement
- Smart Auto Link (Selected Cooker Hob Models)
- Smart WIFI Link
- Gesture sensor
- Odor reduction rate up to 97%
- Turbo wash + nano coating
- Corrosion-resistant nano coating
- Ducted extraction or recirculation
- Touch-panel controls
Dimensions and installation
Product dimensions and technical details
| Width | 896 mm |
|---|---|
| Depth | 321 mm (including the mats) |
| Chimney | 407 mm wide |
| Chimney height | 470 to 770 mm (telescopic) |
| Canopy when open | 362 mm forward (182 mm below the body) |
| Slim depth | 325 mm (the part that sits inside the cabinet) |
| Opening clearance | 105 mm (how far the front drops when it runs) |
| Motor | 490 W rated (BLDC inverter, 3.2 kg core, 2,000 rpm, rated past 30,000 hours) |
| Supply | 220 to 240 V (50 to 60 Hz, energy rating Grade 1) |
| Lighting | 2 x 2 W LED |
Installation requirements
| Clearance above the hob | 600 to 650 mm |
|---|---|
| Bottom of hood from the floor | 1,450 to 1,500 mm (over an 850 mm cabinet) |
| Ducting hole from the floor | 2,380 mm (7 inch, back to back or side way) |
