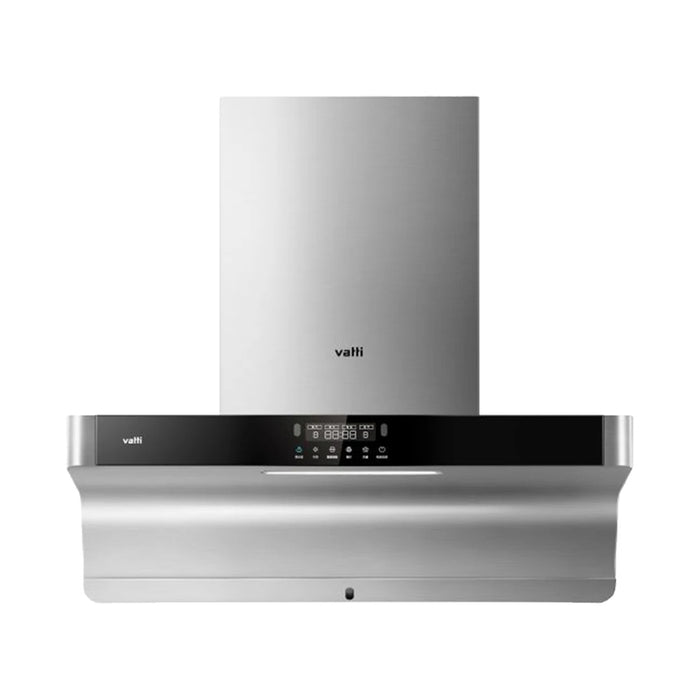

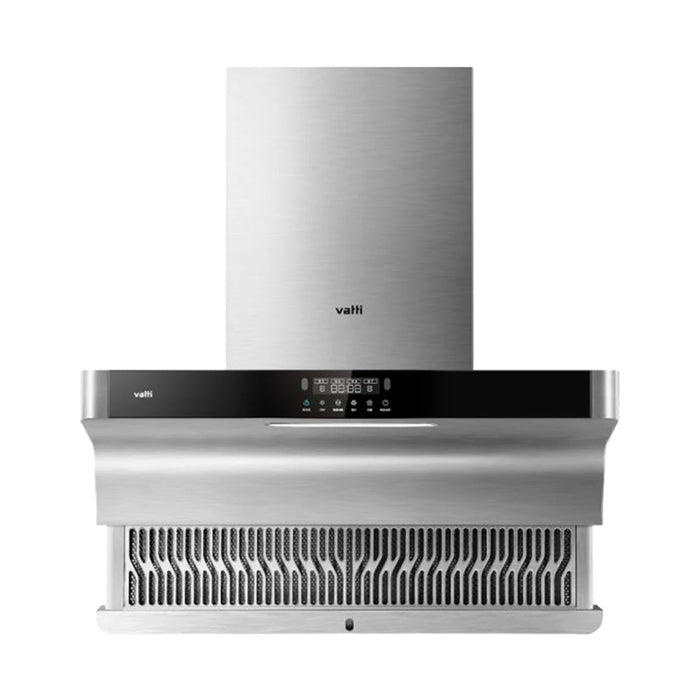

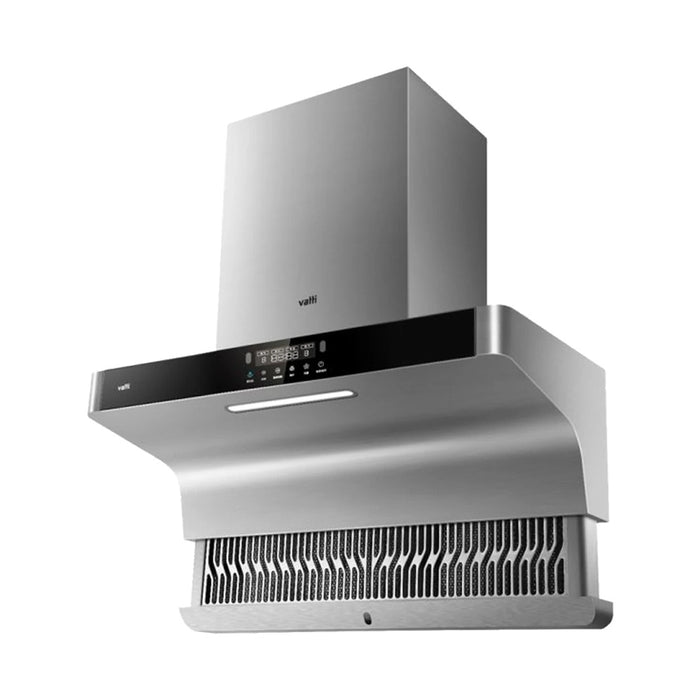

Cooker Hood VATTI V993
RM5,499.00 MYR
SKU VT-0130A
Details
The VATTI V993 uses a lowering air inlet to collect smoke closer to the cookware. Its 896 mm body houses a motor rated for 2,500 m³/h airflow and 850 Pa static pressure, with a stated noise level of 50 dB.
Specifications
| Airflow | 2,500 m³/h |
|---|---|
| Pressure | 850 Pa |
| Noise | 50 dB |
| Oil capture | 85 % |
- Lifting type air inlet design
- Curved corner
- BLDC motor
- Waterproof motor
- Hot pressure steam wash
- Touch-panel controls
- Gesture sensor
- Corrosion-resistant coating
- Ducted extraction or recirculation
Dimensions and installation
Product dimensions and technical details
| Width | 896 mm |
|---|---|
| Depth | 420 mm (432 mm including the rubber mats behind it) |
| Height, closed | 873 mm (up to 1,165 mm with the chimney extended) |
| Chimney adjustment | 0 to 320 mm |
| Chimney | 420 mm wide (324 mm deep including the mats) |
| Body height | 325 mm (475 mm with the inlet lowered) |
| Height, inlet lowered | 1,315 mm (measured to the top of the extended chimney) |
Installation requirements
| Clearance above the hob | 500 to 600 mm |
|---|---|
| Bottom of hood from the floor | 1,350 to 1,450 mm (over an 850 mm cabinet) |
| Cabinet opening | 910 mm (the shelf above the hood lifts out) |
| Ducting hole from the floor | 2,300 to 2,400 mm (7 inch, back to back or side way) |
| Hood outlet | 200 mm diameter |
| Ventilation hose | 180 mm inside, 185 mm outside |
| Telescopic pipe to the ceiling | 120 mm minimum |
