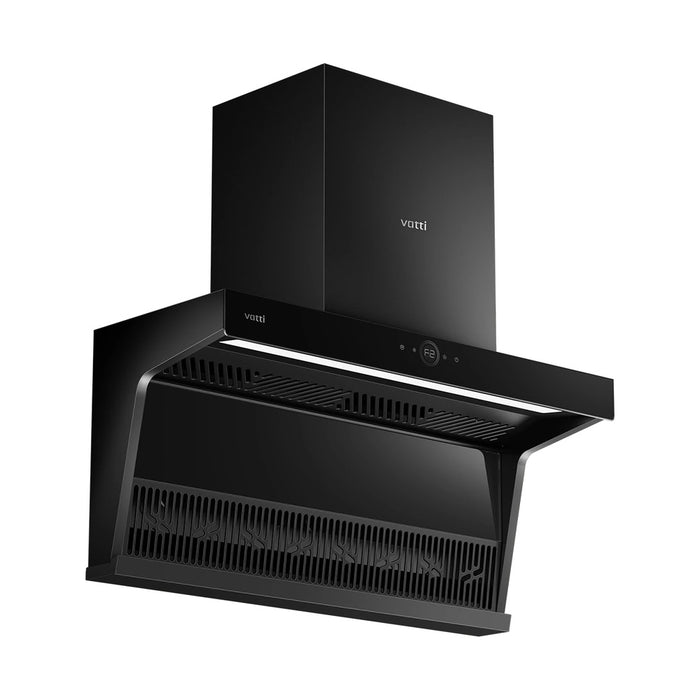

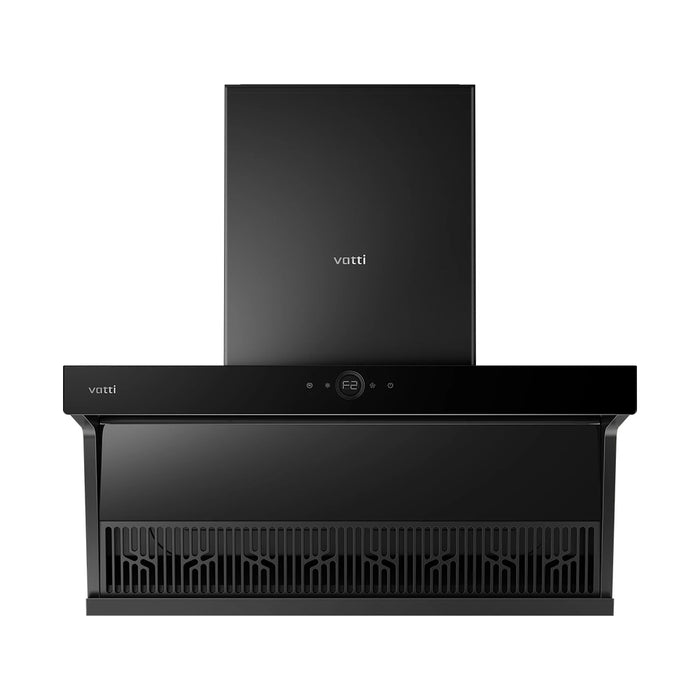

Cooker Hood VATTI V996
RM2,399.00 MYR
SKU VT-0130E
Details
The VATTI V996 draws smoke through top and side inlets in a compact body. Rated airflow is 1,950 m³/h, pressure is 500 Pa and noise is 54 dB. A heat-based automatic cleaning cycle takes approximately 17 minutes.
Specifications
| Airflow | 1,950 m³/h |
|---|---|
| Pressure | 500 Pa |
| Noise | 54 dB |
- Gesture sensor
- Waterproof motor
- Automatic heat cleaning
Dimensions and installation
Product dimensions and technical details
| Width | 896 mm |
|---|---|
| Depth | 345 mm (360 mm including the mats) |
| Height | 870 mm (body and chimney) |
| Front panel | 77 mm (the visible edge under a cabinet) |
| Chimney | 400 mm wide (297 mm deep) |
Installation requirements
| Clearance above the hob | 300 to 380 mm |
|---|---|
| Bottom of hood from the floor | 1,150 to 1,230 mm (over an 850 mm cabinet) |
| Cabinet opening | 896 mm (with a removable shelf on top of the hood) |
| Ducting hole from the floor | 2,270 to 2,350 mm (7 inch, back to back or side way) |
| Hood outlet | 190 mm diameter |
| Ventilation hose | 180 mm inside, 185 mm outside |
| Burner centre from the wall | 290 mm maximum |
